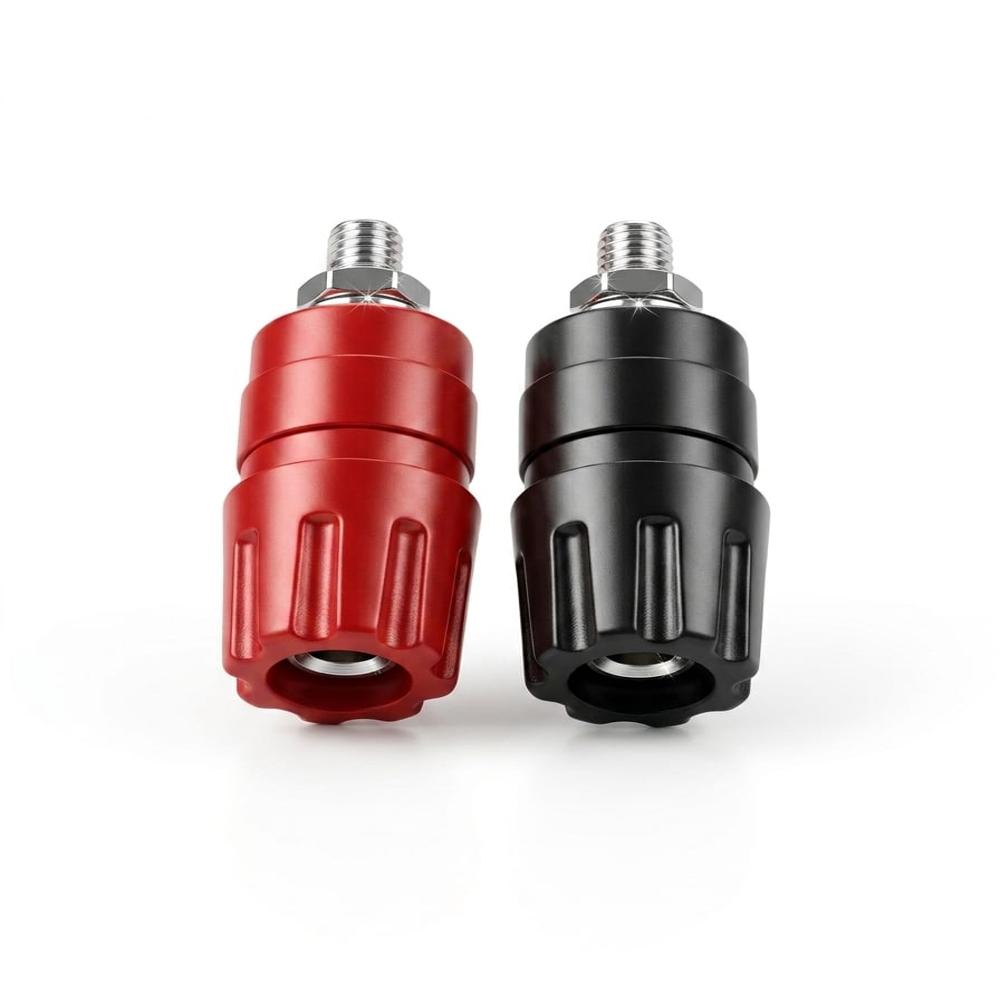

BTI 5A

Name: BTI 5A
Brand: SITARAM BRASS PRODUCTS
Price: 22.0 INR
Availability: InStock

Price 22.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

BTI 5A Specification

CNC Machining
No

Color
red, black,green,blue,yellow

Usage & Applications
electronics

Material
brass

BTI 5A Trade Information

Minimum Order Quantity
1000 Pieces

Delivery Time
1 Week

BTI 5A About

The BTI 5A (BTI 5 Amp) is a standardized, single-pole binding post terminal / panel-mount socket widely used in electrical circuits, distribution boards, test equipment, and DIY electronics. It provides a secure, isolated junction point for connect/disconnect wiring or standard 4 mm banana plug connections.

Key Specifications & Features

Feature	Specification / Detail
Current Rating	$5\text{ A}$ continuous
Voltage Rating	Up to $250\text{ V AC}$ / $500\text{ V DC}$
Contact Material	High-conductivity brass or copper alloy (nickel-plated or gold-plated)
Body / Insulation	Molded high-impact Bakelite or ABS plastic (flame-retardant, UL94 V-0)
Mounting Type	Panel mount (typically fits a standard $7\text{ mm}$ or $0.25\text{-inch}$ chassis hole)
Connection Method	Screw-clamp / threaded post for bare wire (up to $2.5\text{ mm}2$ ), plus standard $4\text{ mm}$ top jack
Color Coding	Red (Positive / Phase) and Black (Negative / Neutral / Ground)

Design & Construction

Insulated Body: Built with elevated lip washers/chassis insulators on both front and rear to prevent short circuits against metal panel enclosures.
Low Resistance: Nickel or gold plating over the inner brass core minimizes contact resistance ( $<10\text{ m}\Omega$ ) and prevents corrosion.
Clamping Mechanism: Uses an integrated screw-down collar (with internal brass strip/washers) to clamp bare wire tips tightly without needing soldering.
